8kw/12kW/15kw Induction Heating Hot Air Generator

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
8kw / 12kW / 15kw high-efficiency Induction Heating Hot Air Generator is a new generation of standard industrial and commercial electromagnetic heating high-efficiency heating expert newly developed by the company in 2019. It can directly turn the metal barrel into a heat source, increase the heat dissipation area and absorb the heat more directly. It only needs a short heating time and distance to heat the cold air to a high temperature state. The hot blast does not bring rust and impurities, and the temperature rises quickly, Moreover, the temperature can be raised to 150 ℃ in 3 minutes, and the output can be improved compared with the heating method of heating wire and heating ring in the same time. The electromagnetic heating ring itself does not generate heat, and is made of insulating materials and high-temperature cables. It has the advantages of long service life, fast heating rate and no daily maintenance; The fan part has a unique design to reduce the generation of noise. It can also be configured with different air pressure fans according to the actual use needs of users, which is flexible and practical. The air volume of the fan can be adjusted according to the production needs!
  • JS1800-8kW-12kW15kW

  • jiangxin/Jonson

Availability:
Quantity:

Product Overview

The 8kW/12kW/15kW Induction Heating Hot Air Generator is a cutting - edge industrial and commercial electromagnetic heating device. Developed in 2019, it represents a new generation of high - efficiency heating solutions. Unlike many competing products, it can directly transform the metal barrel into a heat source. This unique feature not only enlarges the heat dissipation area but also enables more direct heat absorption.


Superior Performance

Heating Efficiency

  • Rapid Heating: It outperforms many counterparts in the market. Competing products often require longer heating cycles, but this generator can heat cold air to a high - temperature state within a short heating time and distance. It can raise the temperature to 150℃ in just 3 minutes. In contrast, most traditional heating methods like heating wires and heating rings take more time to achieve similar results, and our product can boost output in the same time frame.

  • Clean Heating: The hot blast produced is free of rust and impurities. This is a significant advantage over some competing heating systems that may introduce contaminants into the airflow, which can be detrimental to sensitive industrial processes or product quality.


Durability and Maintenance

  • Long - lasting Components: The electromagnetic heating ring of this generator doesn't generate heat on its own. Made from insulating materials and high - temperature cables, it has a much longer service life compared to the heating elements of many competing products. Those competitors' heating parts may be prone to premature failure due to overheating or material degradation.

  • Low Maintenance: There is no need for daily maintenance, which saves both time and cost. In contrast, some competing heating generators require frequent checks, part replacements, and calibration to maintain normal operation.


Fan System

  • Quiet and Flexible: The fan part has a unique design that reduces noise generation, a feature that may not be as well - optimized in some competing products, which can be noisy and disrupt the working environment. Moreover, it can be configured with different air pressure fans according to users' actual needs, and the air volume can be adjusted based on production requirements. This flexibility is often lacking in rigidly - designed competing systems.


Product Paramenters
rated power:
8kW/12kW/15kW
Outlet temperature:
80-130ºC
Air volume:
1000-2000m3/h
Wind pressure:
800-1000Pa
Air outlet size:
diameter 150mm

Additional Advantages

Control and Protection

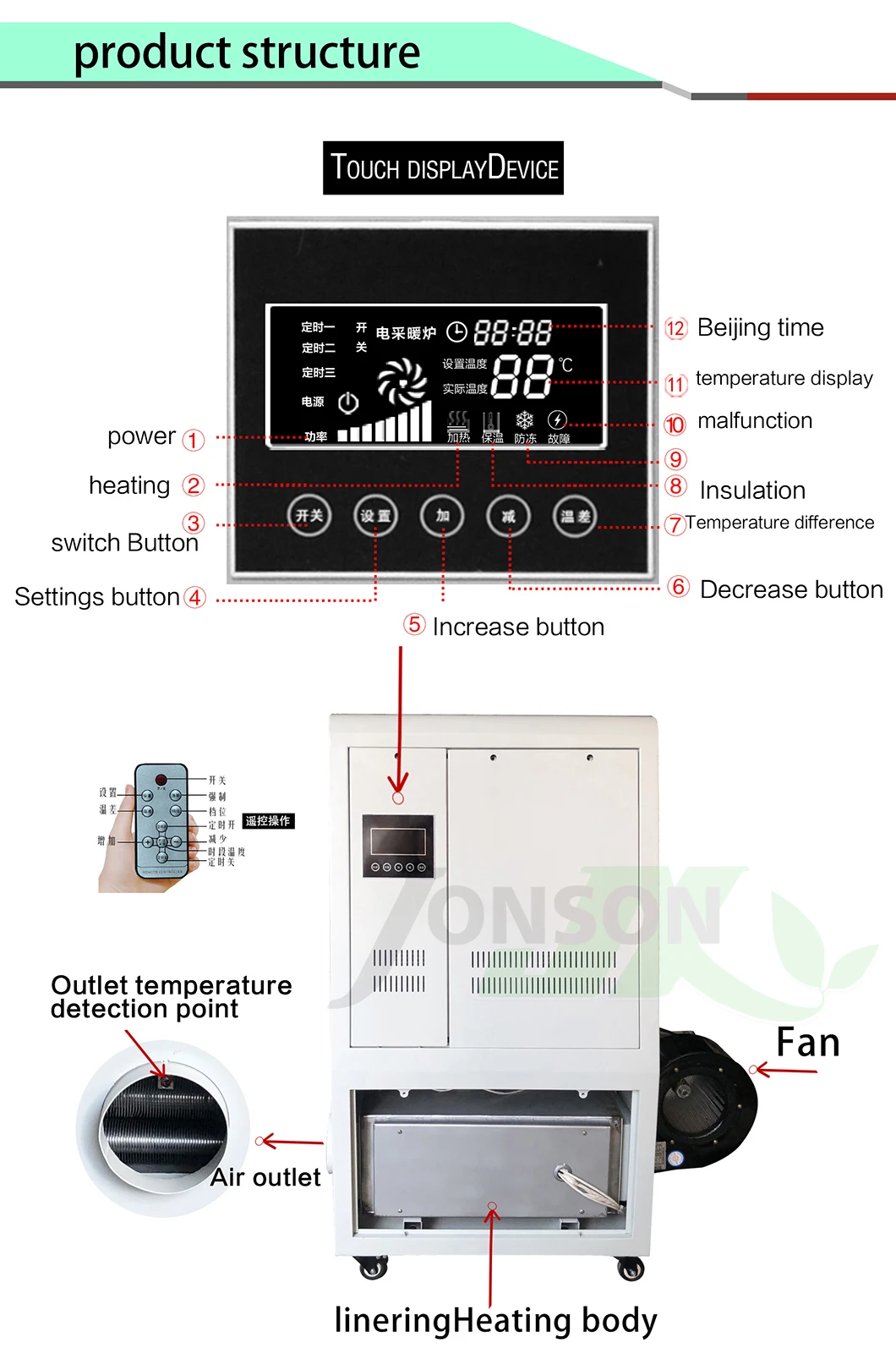

It features stepless power regulation and strong anti - interference ability. The touch display device allows for easy operation, with functions such as Beijing time display, temperature display, malfunction indication, temperature difference display, and button controls for setting adjustments. Competing products may have less intuitive control interfaces or lack such comprehensive protection and regulation functions.

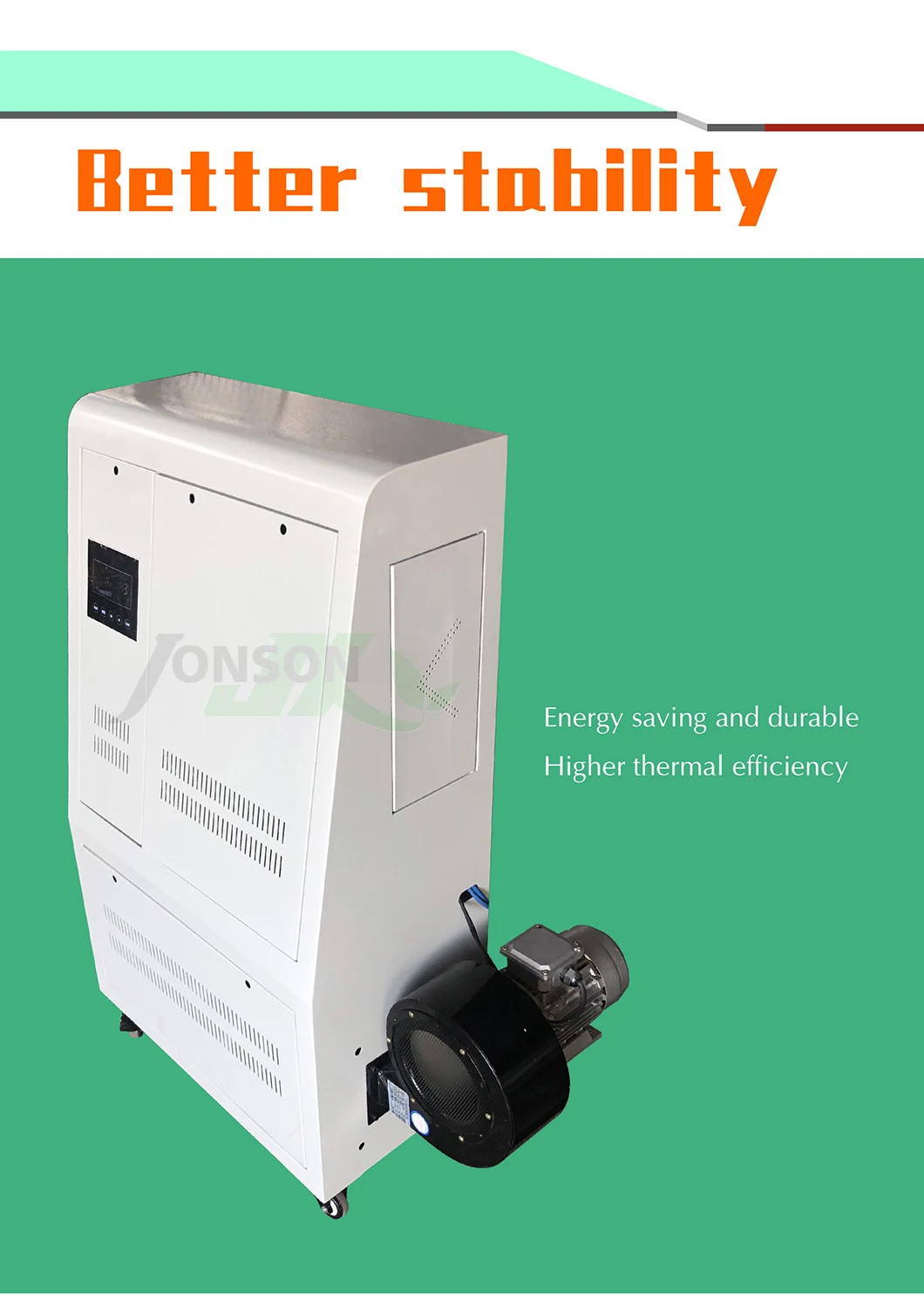

Stability and Energy - saving

With better stability, it is energy - saving and durable, and has higher thermal efficiency. It also has overheating protection, liquid crystal temperature display (accurate to 0.5 ºC), constant temperature control, high - temperature delay protection, and microcomputer control for long - term continuous use. These features ensure reliable operation and energy efficiency, outshining many competitors that may consume more energy or have less stable performance.

Application Range

It has a wide range of applications, including food drying and processing, coal mines, greenhouse vegetables, vegetable gardening, chicken coop heating, flower cultivation, forest fruits, breeding seedlings, animal husbandry, heating, and other industrial hot - air product needs. It can adapt to various working conditions better than some competing products that are only suitable for limited application scenarios.
