Industrial processes rely heavily on precise thermal management. A robust hot air generator operates as a complete, engineered system designed to produce and distribute process heat. They deliver continuous temperatures ranging from 60°C to over 600°C. Facilities use them daily for drying, material curing, and large-scale space heating.
However, selecting the wrong system introduces severe operational risks. You might face sudden equipment failure or massive energy waste. Worse, an incorrect architecture often leads to complete product contamination. Selecting the right unit requires matching complex engineering specs directly to your process demands.
This guide cuts through marketing claims to help you evaluate system architectures, fuel sources, and strict performance tolerances. We will explore everything from traditional direct combustion models to the modern induction hot air generator. You will learn exactly how to specify a reliable industrial deployment.
Categorization dictates application: The fundamental choice lies between Direct-Fired (100% heat transfer but introduces exhaust gases) and Indirect-Fired (clean air via heat exchangers, up to 90% efficiency).
Power source evolution: While gas and oil dominate heavy industry, the induction hot air generator is emerging as a superior alternative to traditional bare-wire electric heaters for clean, continuous-duty applications.
Sizing requires precise math: Accurate specification relies on three core variables: volume/mass to be heated, required temperature delta, and the insulation coefficient of the environment.
Expect strict performance tolerances: Industrial-grade systems should guarantee temperature outputs within a ±5°C margin of error.
A proper industrial heating unit is never just a simple box containing a flame or element. It requires a carefully engineered framework to generate, mix, and deliver thermal energy safely. Most traditional combustion-based models utilize a standardized three-chamber architecture.
Understanding this internal geometry helps you assess equipment durability and efficiency.
Combustion Chamber: This acts as the primary heat source. It typically features a concentric double steel shell. Engineers line the inner shell using high-grade refractory materials. This lining protects the outer steel from extreme flame temperatures while reflecting heat inward.
Conical Venturi Mixing Chamber: In direct-fired systems, this section plays a critical role. Dilution air enters the chamber and absorbs raw heat. The conical venturi shape creates a pressure drop. This mechanism aggressively merges fresh air and combustion products for uniform temperature distribution.
Outlet Chamber: This final section conditions the turbulent airflow. It stabilizes pressure and prepares the heated air for smooth process delivery.
You must also evaluate essential sub-systems. Manufacturers design these units as integrated ecosystems. They depend entirely on auxiliary equipment to function safely. A standard setup requires heavy-duty combustion air blowers to feed the flame. Liquid fuel systems need specialized atomizing blowers to vaporize oil. Furthermore, you need high-capacity dilution air fans to control the final output temperature and prevent overheating.
The most important engineering decision involves how the process air interacts with the heat source. You must choose between direct and indirect architectures based entirely on your tolerance for contaminants.
Direct-fired units mix process air directly into the burner's thermal output. The flame directly heats the passing airstream. This mechanism achieves an impressive 100% thermal efficiency. No heat is lost through barrier walls or exhaust flues.
However, this efficiency introduces a major drawback. The process air absorbs all byproducts of combustion. It carries carbon monoxide, unburned hydrocarbons, and moisture directly to the target environment. You should only evaluate this option for specific applications. For example, they work well for certain agricultural drying tasks or well-ventilated construction sites. The product being heated must tolerate raw exhaust gas exposure.
Indirect-fired units utilize a multi-pass heat exchanger. This barrier keeps the burner flame and exhaust gases completely isolated from the clean process air. The flame heats the exchanger walls, and the clean air absorbs heat from the opposite side.
When evaluating these systems, look for strict engineering realities. The best units maintain positive air pressure on the fresh air side of the exchanger. Over years of thermal cycling, heat exchangers can develop microscopic fissures. Positive pressure ensures clean air leaks into the exhaust stream, rather than allowing toxic exhaust to contaminate your process. This safety mechanism is crucial for food processing and cleanroom environments.
This isolation does incur an efficiency penalty. Heat transfer efficiency usually drops to around 88% to 90% because some thermal energy escapes through the exhaust flue.
Feature | Direct-Fired Architecture | Indirect-Fired Architecture |
|---|---|---|
Heat Transfer Efficiency | 100% (No exhaust losses) | 88% - 90% (Losses via flue) |
Air Quality | Contains combustion byproducts | 100% Clean and breathable |
Primary Applications | Outdoor sites, concrete curing, aggregates | Food processing, pharmaceuticals, indoor heating |
System Complexity | Lower (Simpler burner mixing) | Higher (Requires robust heat exchangers) |
Selecting a fuel source dictates your operational logistics, maintenance schedules, and safety protocols. The industry currently supports four primary power sources.
Fossil fuels offer incredibly high energy density. They remain the ideal choice for massive CFM (cubic feet per minute) requirements. Heavy industrial plants rely on them to move massive volumes of hot air quickly. However, they expose you to volatile fuel pricing. They also demand strict adherence to local emissions compliance laws.
Biomass systems utilize agricultural or wood waste directly as fuel. Operations frequently burn corn cobs, wood chips, or nut shells. They offer a highly cost-effective solution for closed-loop agricultural operations. You basically turn farm waste into free heat. However, biomass requires heavier maintenance. You must manage ash removal, clear burner grates, and handle bulk material storage.
Electric heating offers a clean, exhaust-free alternative. Traditional models use bare resistive wire elements. They provide extremely fast heat-up times and maintain a very compact footprint. Despite these benefits, they present a massive implementation risk. They are highly vulnerable to catastrophic failure. They must connect to a fail-safe blower. If airflow stops for even a few seconds, thermal inertia causes the exposed wires to overheat and instantly burn out.

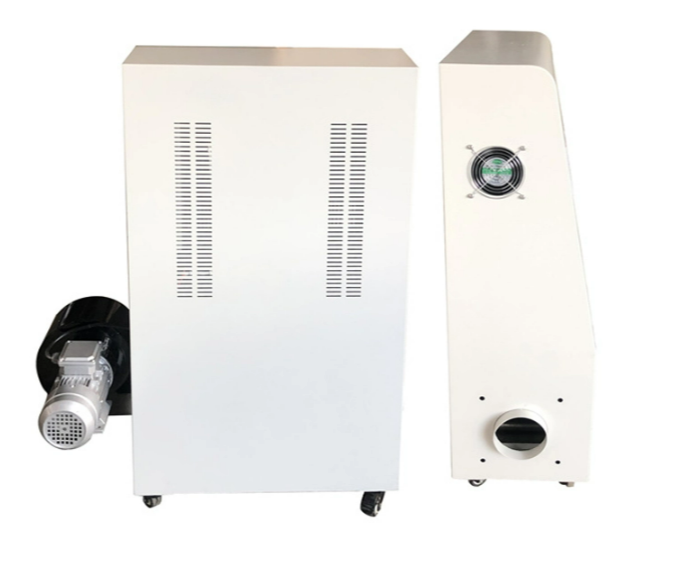

The modern solution overcomes the fragility of resistive wires. An induction hot air generator uses electromagnetic induction to heat a solid conductive core. Process air then passes over this core to absorb heat safely.
This provides immense decision value for buyers. It eliminates the fragile nature of bare resistive wires entirely. It offers exceptional longevity because the heating element never degrades through air friction or oxidation. It provides vastly safer operation. It lacks exposed heating elements and open flames. Today, it stands as the standard for cleanrooms, pharmaceutical fluidized beds, and high-precision electronic manufacturing.
Buyers frequently make the mistake of relying on generalized square-footage estimates. Industrial heating demands precise mathematics. Undersized units run constantly and burn out prematurely. Oversized units cycle on and off too quickly, stressing components.
Proper sizing requires you to calculate the exact thermal load. You must evaluate three core variables before requesting vendor quotes:
Volume or Mass: Calculate the total cubic volume of the space. Alternatively, measure the exact mass of the product moving through the processing chamber per hour.
Temperature Delta (ΔT): Determine the maximum expected temperature gap. Subtract the lowest expected ambient winter temperature from your desired indoor process temperature.
Thermal Conductivity (K-factor): Assess the insulation quality of your environment. You must account for heat lost through facility walls, uninsulated ductwork, or thin processing chamber steel.
Do not accept vague performance promises. Establish baseline expectations based on recognized industrial manufacturing standards. A qualified vendor should confidently guarantee specific performance metrics. First, demand temperature output error margins of no more than ±5°C. Second, they must guarantee air volume delivery within ±2% of the stated specification. Finally, expect fuel or energy consumption rates to stay within a ±5% variance. If a vendor refuses to guarantee these tolerances, they likely use inferior control systems.
Industrial heating hardware is only as reliable as its software. Modern systems integrate complex sensors to prevent accidents and optimize energy use.
For fuel-based systems, you must prioritize closed-loop Lambda O2 sensors. These sit inside the exhaust stream. They continuously read oxygen levels to measure combustion efficiency. They dynamically adjust air-to-fuel ratios in real-time. This dynamic combustion control prevents toxic emission spikes and eliminates severe fuel waste.
Electric systems require highly responsive control loops. Precision PID (Proportional-Integral-Derivative) temperature regulation is essential for an induction hot air generator. The PID controller seamless modulates electrical power draw. It holds exact temperatures, often ranging from 250°C to 600°C, without triggering extreme power cycling. This protects the local electrical grid and extends component life.
Safety is non-negotiable. Ensure your vendor shortlists include comprehensive automated protections. Systems need auto-ignition sequence locks to clear residual gases before sparking. They require high-temperature cut-offs to shut down power if airflow drops. Finally, combustion models must feature instant flame-failure protections to halt fuel flow if the burner blows out.
Navigating the industrial heating market requires a systematic approach. You must align your process requirements with proven engineering architectures. Follow these steps to narrow down your options efficiently.
Step 1: Define your exact process tolerance for contaminants. This single decision immediately dictates whether you pursue a Direct-Fired or Indirect-Fired system.
Step 2: Evaluate your infrastructure readiness and expected long-term utility costs. You must assess if your facility's electrical grid capacity can support an induction unit versus relying on existing heavy gas infrastructure.
Step 3: Demand CFD (Computational Fluid Dynamics) modeling from vendors for high-capacity custom installations. They must prove their equipment achieves uniform heat distribution across your specific chamber geometry before you sign the purchase order.
A: A direct system mixes process air with the burner's flame and exhaust. It achieves 100% efficiency but introduces combustion byproducts. An indirect system uses a heat exchanger to isolate the flame from the fresh air. It provides 100% clean air but operates at a slightly lower efficiency (88-90%).
A: It eliminates the use of bare, fragile resistive heating wires. Induction heating relies on an electromagnetic core. This leads to vastly improved safety, zero risk of instant wire burnout upon airflow loss, and significantly lower long-term maintenance.
A: Facilities use them across diverse sectors. Primary applications include spray drying in food processing, fabric heat-setting in textiles, industrial paint curing, and heavy powder drying in chemical manufacturing.
A: Yes, but only specific types. Indirect-fired, standard electric, and induction models are completely safe for closed environments because they output clean air. Direct-fired combustion models emit exhaust gases and require extensive ventilation.
